16"x16" Door Assembly

Eagle 3000 Diaagrams & Exploded Views

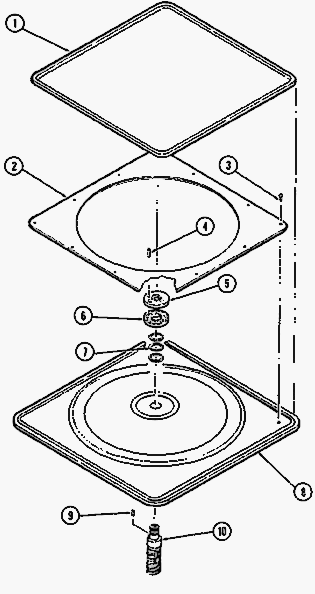

Eagle 3000 16" Small Gravity Stage II Exploded View
16"x16" Door Assembly

*
Contact Us For Pricing
Reference Number Description OEM Part Number
1 GASKET P 74367 091
2 COVER, DOOR BACK P 54475 061
3 DRIVE SCREW P 47598 061
4 ROLL PIN P 44604 061
5 RING, LOCK CLUTCH P 9083 091
6 NUT, DOOR POST P 22057 091
7 SHIM, DOOR P 150330 001
8 DOOR P 149505 091
9 PIN P 36683 061
10 POST, DOOR P 22058 063
