Description
Part #PCS043-201
Pelton Crane Part #004079
FUNCTION SWITCH (3 LEAD)
- 20A @ 125-250VAC, 50/60HZ, 1HP @ 125VAC; 2HP @ 250VAC
- Mounts to bracket in main valve assembly

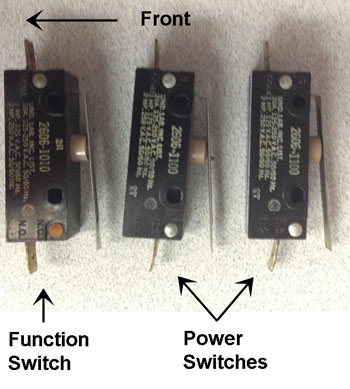

Notice that the Original Function Switch (2606-1010) has only two terminals on it. It has been discontinued and replaced with this Function Switch, which has 3 Terminals.
Also notice the position on the terminal of the Function Switch located on the bottom of this picture. The terminal is located on the N.O. (Normally Open) side.
When replacing the original Function Switch with this one (PCS043-201), reconnect the wires to the N.O. Terminal on the new switch and leave the N.C. (Normally Closed) alone.
