Testing the Door Motor

How to test the Midmark Door Motor, Step-By-Step Directions

How To Test The Midmark Autoclave Door Motor System

Testing the Door Motor Assembly on the Midmark Autoclaves is simple, once you know how. Simply Follow These Step-By-Step Directions

Before Starting, you will need to remove the right hand side panel (as you are facing the autoclave) by removing the two screws on top and then lifting out the panel

Procedure Preview

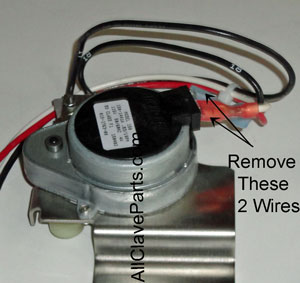

Step 1: Remove the Two Wires From The Motor Locate the 2 wires to be removed

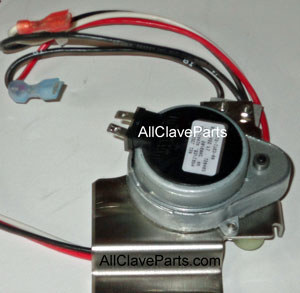

Door Motor With Wires Removed Pull the wires off the terminals

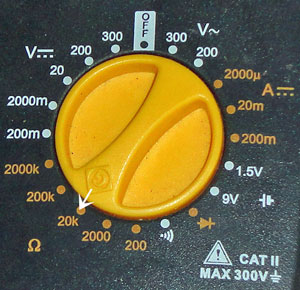

Step 2: Set meter to 20K ohms Ω Move the dial on your meter to 20K Ohms Ω

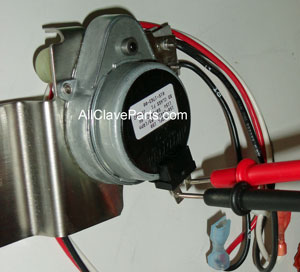

Step 3: Place Meter Probes On Terminals Place a Probe On Each Terminal - Color of Probe does not matter
Step 4: Look At Readings on Your Meter
The Acceptable Range for 120V Autoclaves is 6620 Plus or minus 20%
The Acceptable Range for 230V Autoclaves is 12,200 Plus or minus 20%
The reading you are looking for
If reading is out of acceptable range...Replace door motor. But, If reading is within acceptable range... Perform PC Board Relay Test Click Here For The M9 Door Motor Assembly
Click Here for the M11 Door Motor Assembly
