Statim 5000 Plumbing Diagram


Knowing the path the water takes is essential in autoclave repair & troubleshooting of your Statim 5000 Autoclave for water related problems. And that is why we Happy to provide you with the Statim 5000 Autoclave Plumbing Diagram below

Statim 5000 Plumbing Diagram

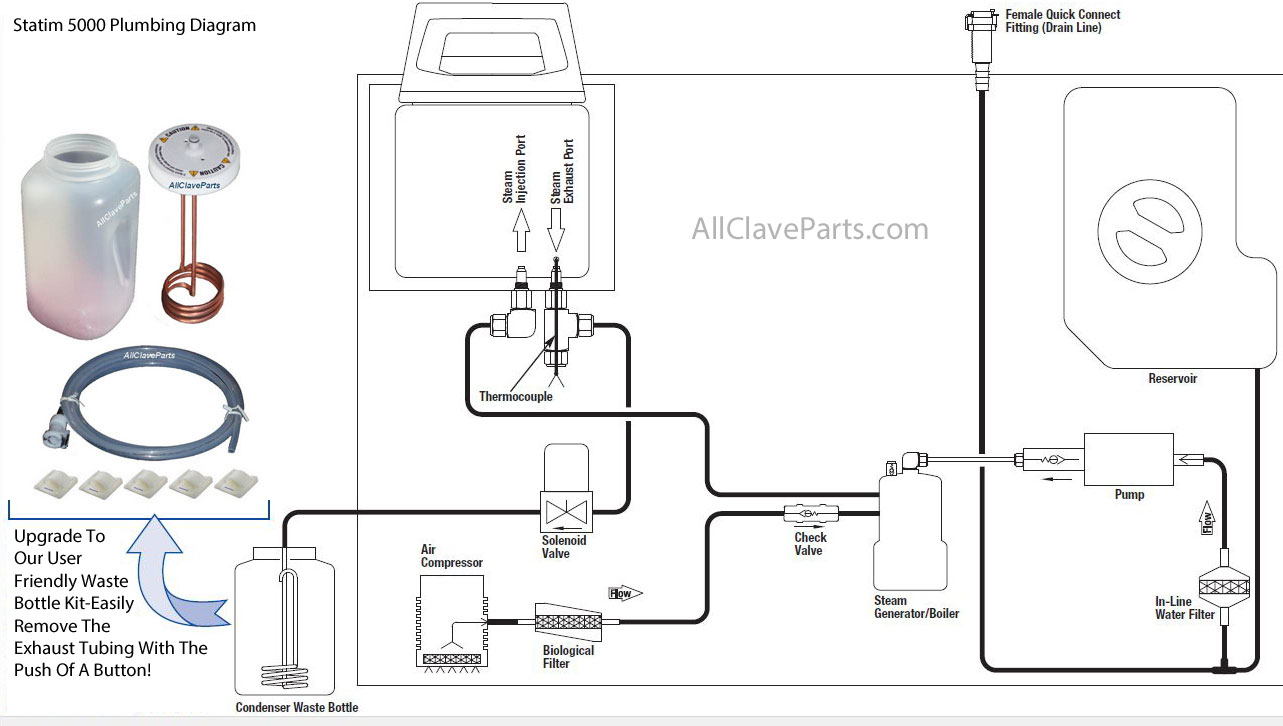

Plumbing Diagram For The Statim 5000 Sterilizer


Click Here or Click On Image For Larger, Printable Diagram


Note: If you are tired of the hassle of unscrewing the nuts to remove the tubing fom the condensor waste bottle every time you need to dump the water out, Upgrade to our Statim 5000 Condensor Waste Bottle Kit SCK016-520

You will love our upgrade kit. Just push a button and pull the tubing off. It could not be simpler!

And, unlike the original kit, we offer every part of our kit individually, so you will never have to replace the entire system again!
